- +Fangyuan FY-HVS Series Multi-deck High Frequency Screen is a wet fine material screening equipment，it is the first forced and accurate classification equipment producted in China for coarse and clean coal slime in coal preparation. It focuses on ash reduction of coarse and clean coal slime and greatly improves the recovery rate of coarse and clean coal slime.Its features are as following:
● The main parts of screen are riveted with rivets, ensuring the reliability and stability of long-term operation, reducing maintenance times and the labor amounts.
● The surfaces are sprayed with polyurea, increasing the wear resistance and corrosion protection, extending the service life of the equipment.

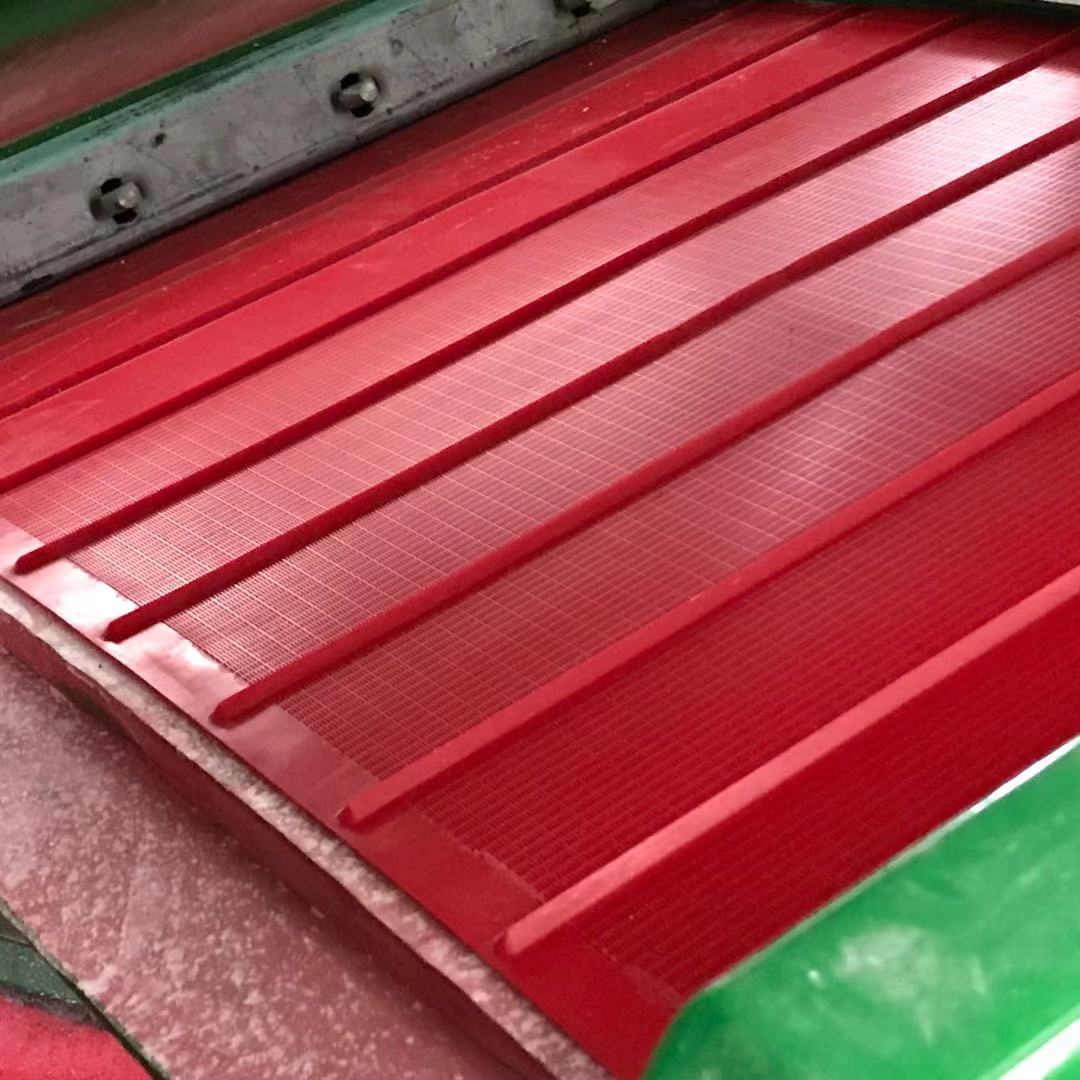

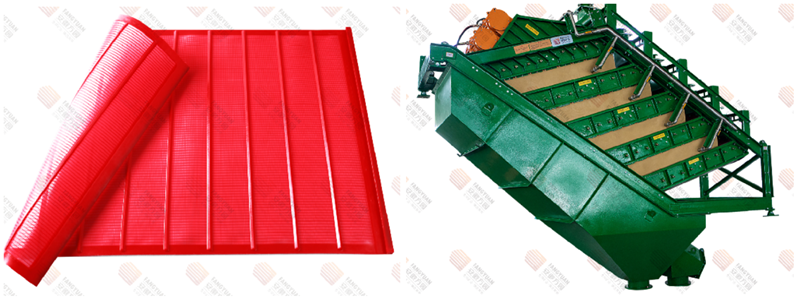

● Matched with the fine screen mesh( Fangyuan innovation),the screen has 5 feeding ways, enlarging the handling capacity and the screening efficiency.
Application range:
■ Separation of fine-grained minerals such as iron, copper, itin, lead, zinc, titanium, etc.
■ Removal of lignite/peat from sand
■ Removal of high specific gravity impurities from sand
■ Ore classification
■ Coarse slime separation
■ Removal of pyrite from fine coal
| Basic information | |
| Size(mm) | 5160x1510x4450mm |
| Wight(t) | 5.3t |
| Electrical parameters | |
| 功率（kw） | 1.8 kw x 2sets |
| Environmental parameters | |
| Mechanical parameters | |
| Sieving area（㎡） | 7.3㎡ |
| Amplitude（mm） | 0.8-2mm |
| Obliquity（mm） | 17.5°-20° |
