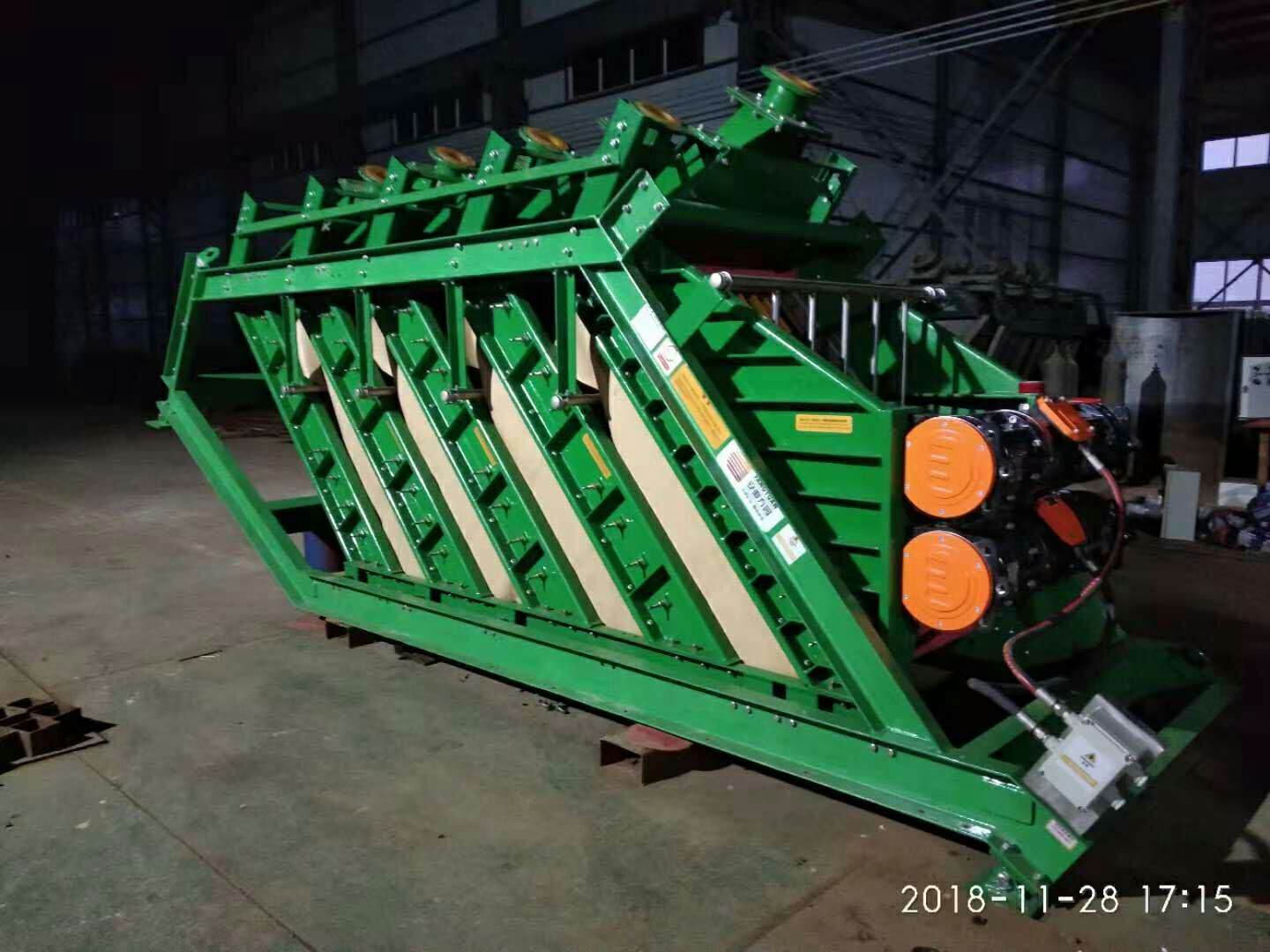

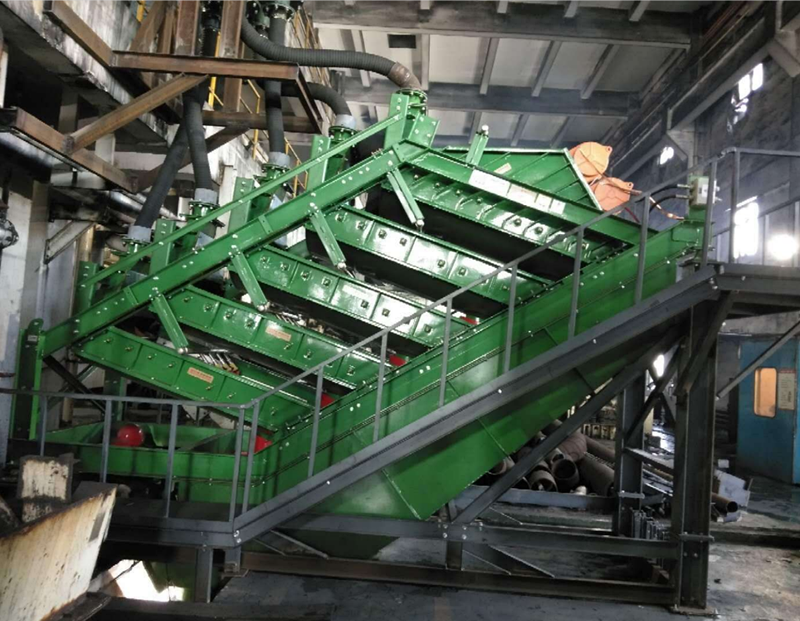

FY-HVS-1520 5-deck High Frequency Screen Mult-deck High Frequency Screen
  • Model:

    FY-HVS-1520
  • Brand:

    Fangyuan
  • Unit:

    set
  • Unit price:

    ¥1.00
  • Quantity:

    - +

Fangyuan FY-HVS Series Multi-deck High Frequency Screen is a wet fine material screening equipment, it is the first forced and accurate classification equipment producted in China for coarse and clean coal slime in coal preparation. It focuses on ash reduction of coarse and clean coal slime and greatly improves the recovery rate of coarse and clean coal slime. Its features are as following:

● The main parts of screen are riveted with rivets, ensuring the reliability and stability of long-term operation, reducing maintenance times and the labor amounts.

● The surfaces are sprayed with polyurea, increasing the wear resistance and corrosion protection, extending the service life of the equipment.

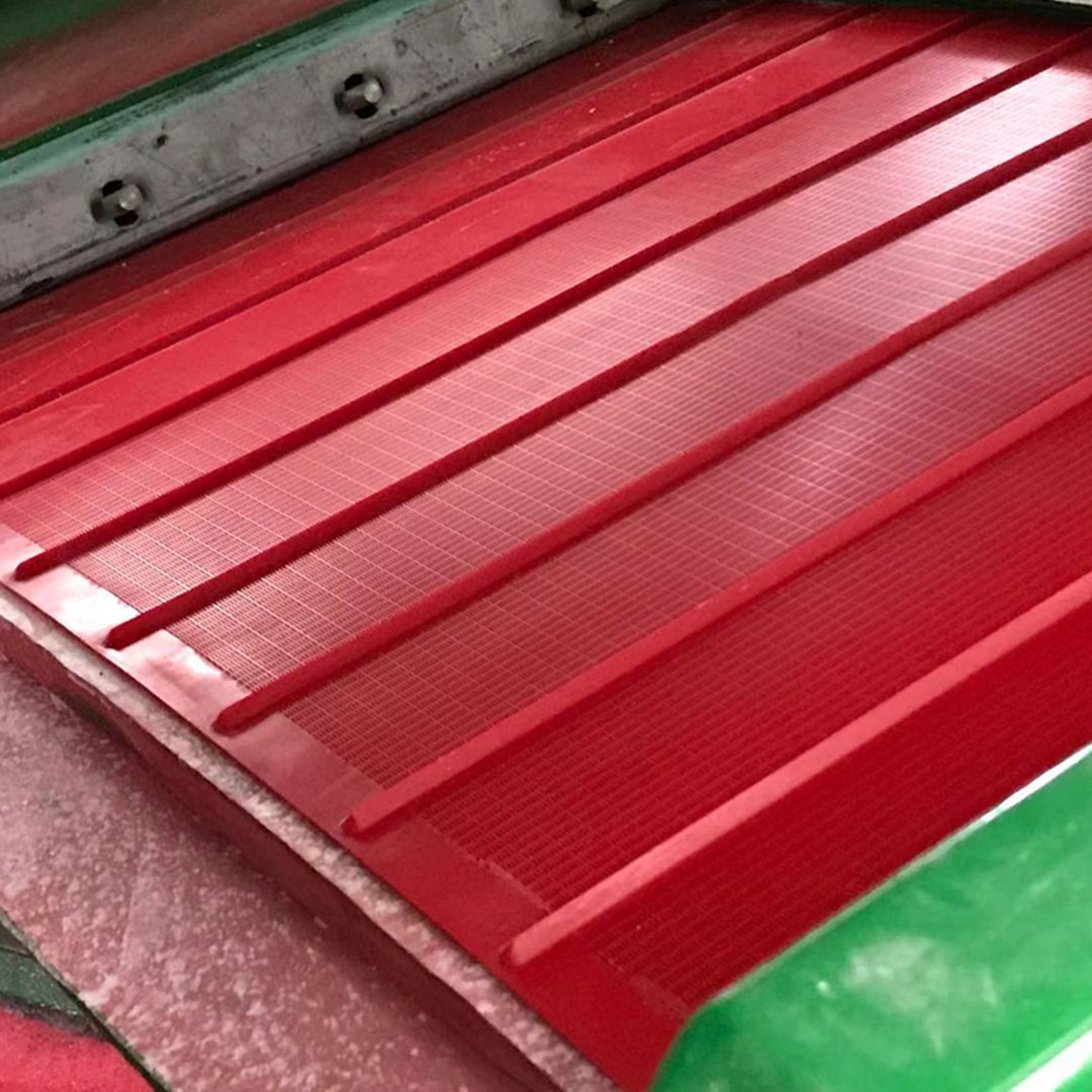

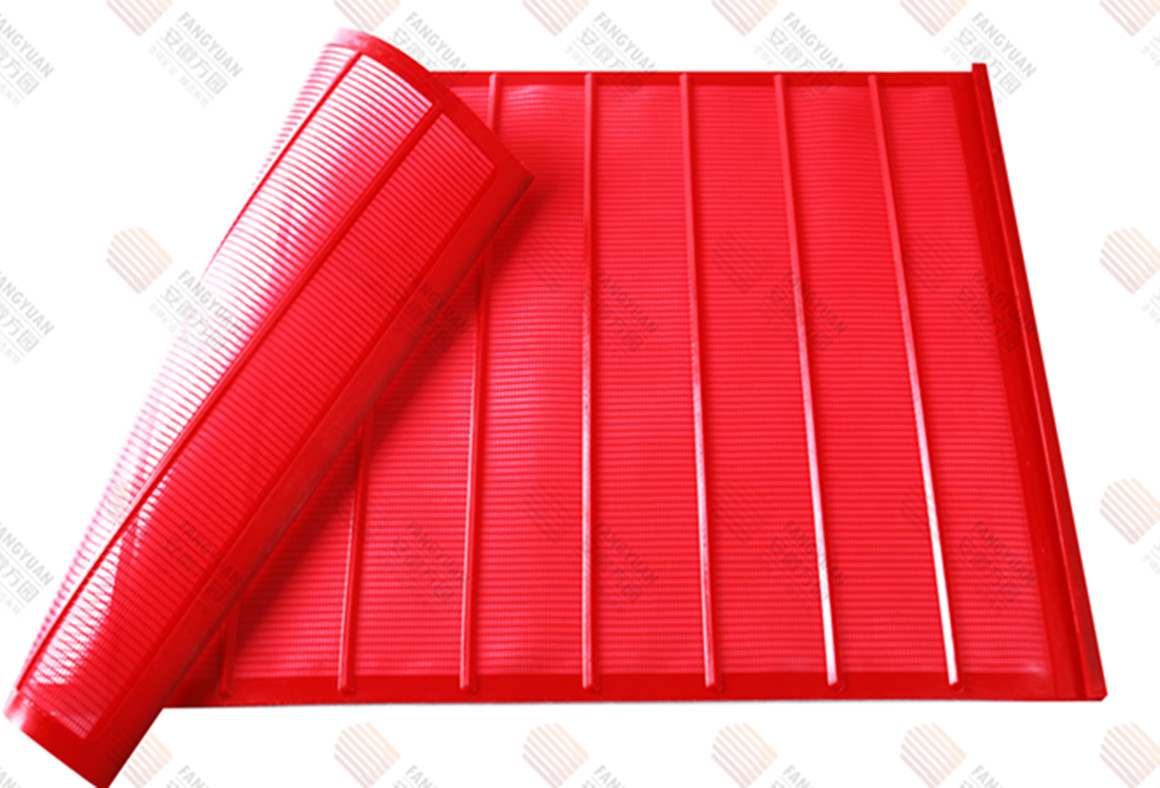

● Matched with the fine screen mesh( Fangyuan’s innovation),the screen has 5 feeding ways, enlarging the handling capacity and the screening efficiency.

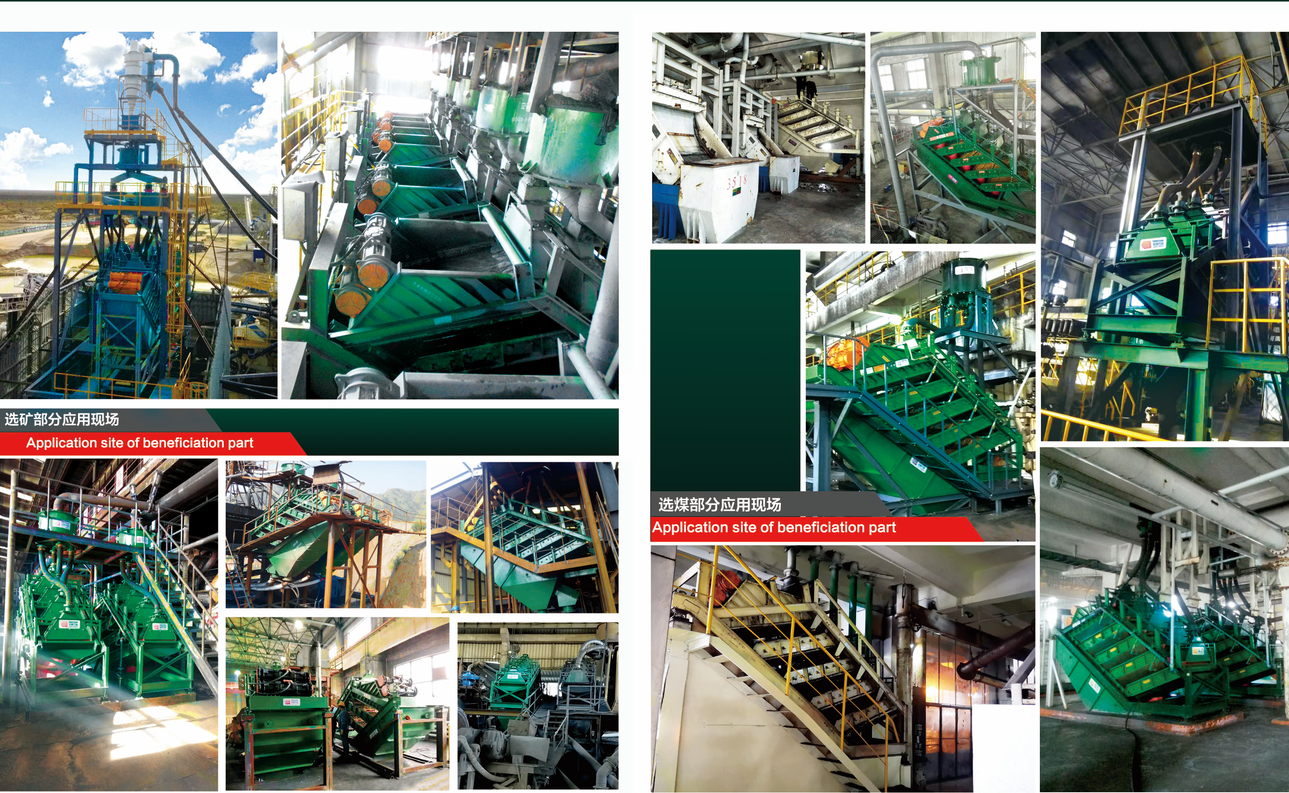

Application range:


■ Coarse slime separation


■ Removal of pyrite from fine coal


■ Removal of lignite/peat from sand


■ Removal of high specific gravity impurities from sand


■ Ore classification


■ Separation of fine-grained minerals such as tin, lead, zinc, titanium, etc.

111111111111111111111111111111111111111111111 (4).jpg111111111111111111111111111111111111111111111 (4)_副本.jpg20200120092027989.jpg20200120092027989.jpg


111111111111111111111111111111111111111111111 (1)_副本.jpg




111111111111111111111111111111111111111111111 (2)_副本.jpg

Basic information
Size(mm) 5160x1510x4450mm
Weight(t) 5.3t
Electrical parameters
Power(kw) 1.8 kw x 2sets
Environmental parameters
Mechanical parameters
Sieving area(㎡) 7.3㎡
Amplitude(mm) 0.8-2mm
Obliquity(°) 17.5°-20°
