Model：
FY-DWGBrand：
FangyuanUnit：
pieceUnit price：
¥1.00Quantity：

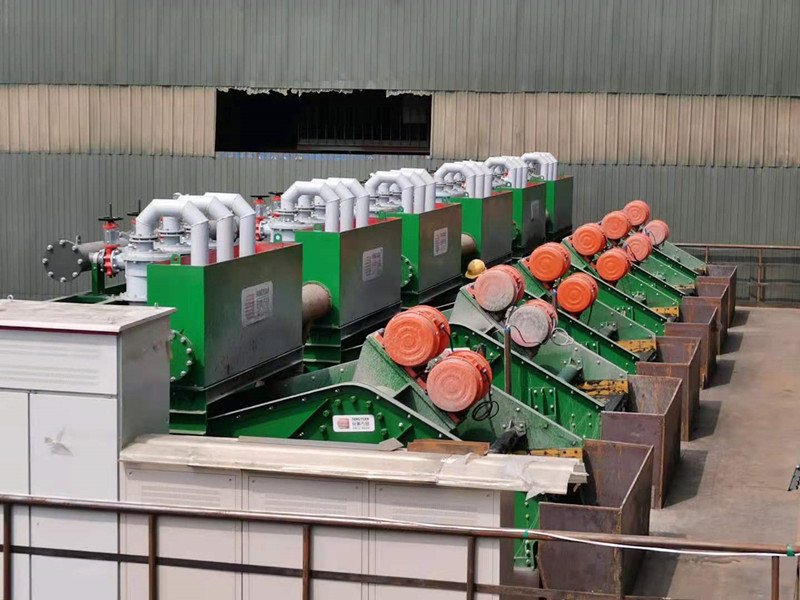

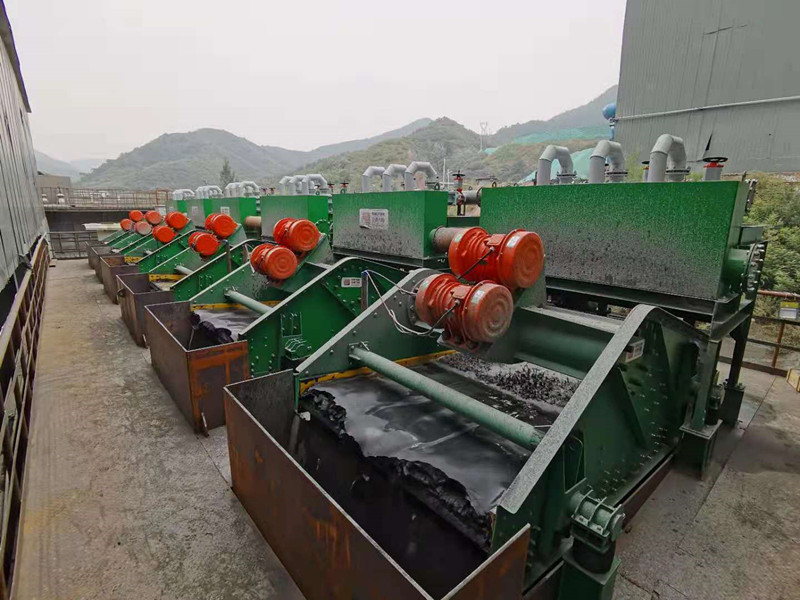

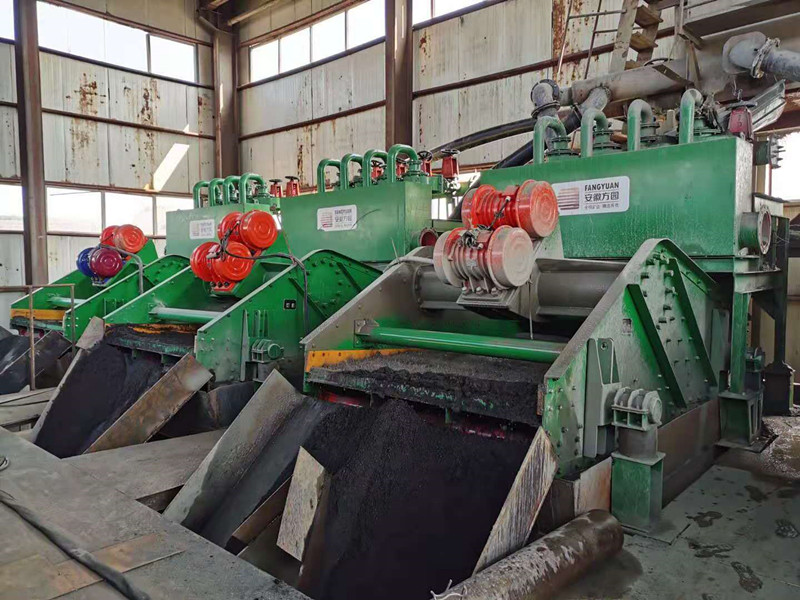

- +FY-GPS Series High Frequency Dewatering Screen adopts advanced German design concept and first class detection technology of processing, It is designed with the principle of equal thickness screening and multi angle screen surface design. It has the advantages of strong stability, large processing capacity and long service life. FY-GPS series Linear Vibrating Screen integrates advanced screening technology and manufacturing process. It is designed according to maintenance free, high reliability and high vibration intensity, and is suitable for various severe working conditions. It is widely used in metal and non-metal fields such as metallurgical mines, coal, non-ferrous, building materials, chemical industry, etc.
In addition, the square holes, round holes and long holes in the opening design of the screen apertures are available, which can adapt to any special screening and reduce the hole plugging situation. The anti- blocking and wear-resistant polyurethane screen meshes has long using life, high screening efficiency, easy disassembly and replacement, and can meet the production needs on site. FY-GPS Linear Vibrating Screen adheres to the rigorous and practical design concept, ensuring high reliability, low failure rate, providing quality assurance, and ensuring the correct operation of each equipment.
The advantages of FY-GPS Series High Frequency Dewatering Screen
▶ Polyurea spraying on the surface of screen under beams
The surface of screen beams are sprayed with wear-resistant polyurea material, and annealing heat treatment was carried out to eliminate welding stress. The side plates and guard plates are cut by CNC plasma; the connectors are connected by high-strength riveting bolts without welding seam.
▶ High frequency vibrating motor
The main body of screen is driven by two high frequency vibration motors to generate linear motion, so that the material can be ejected along the moving direction, so as to operate the screening and dewatering
▶ High quality hot rolled steel
The main body of the screen machine is made of high quality hot rolled steel, and the main vibration beam is designed with thick wall seamless steel pipe.
▶ Rubber Springs
The screen main body is supported by low noise rubber damping springs.
The advantages of screen panels on FY-GPS Series High
The screen meshes of Fangyuan Linear Vibrating Screen is anti-blocking and wear-resistant, the installation method is rail seat type.
● The non-plane hump-shape screen meshes are installed the screen machine, which has high opening rate. For the same area, the screen is designed into a non-plane "hump" shape, which increases the screening area and doubles the screening efficiency.
● Compared with the original screen, the screen doubles the water filtration performance, and effectively dehydrates and degrades the substance.
● The screen panels are produced with standard modules, connected and installed with installation pins, and the apertures can be designed according to the customer's requirements.
● The screen holes on the non-plane hump-shape screen surface are increased, which improves the processing capacity of the screen machine.
Polyurethane hump-shape non plane screen is produced with polyurethane casting molding, The screen panesl are designed as hump-shape stereoscopic non plane screen panels, which have high opening rate, increase the screening area, double the screening efficiency, and effectively dehydrate and dis-integrate. The advantages are high efficiency, energy saving, environmental protection and noise reduction, convenient installation, its also can save energy and reduce consumption for enterprise.
| Basic information | |
| Size（mm） | 1236/ 1536 |
| Size（mm） | 1836/2136/2448 |
| Electrical parameters | |
| Environmental parameters | |
| Mechanical parameters | |
